Type-C Docking Station 4K HDMI

Product Introduction

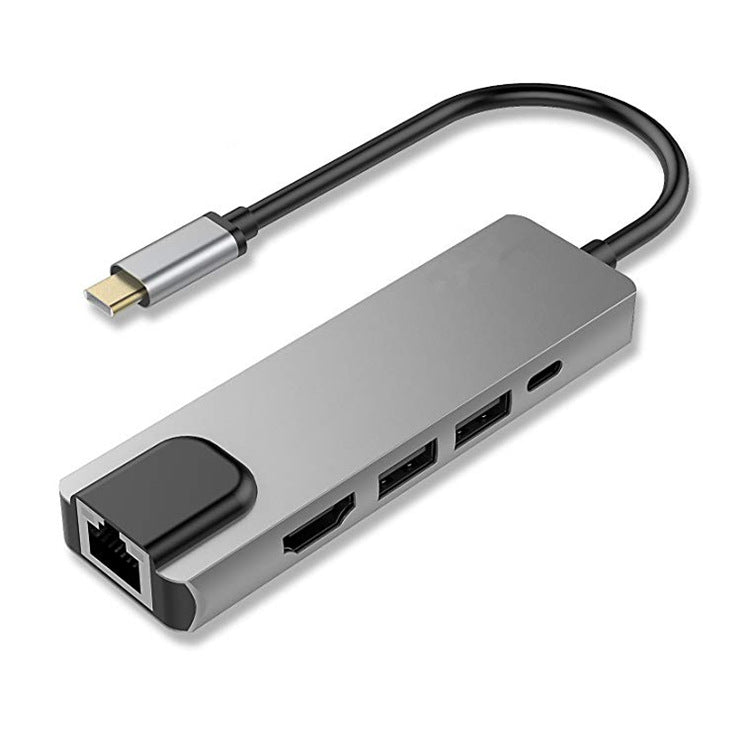

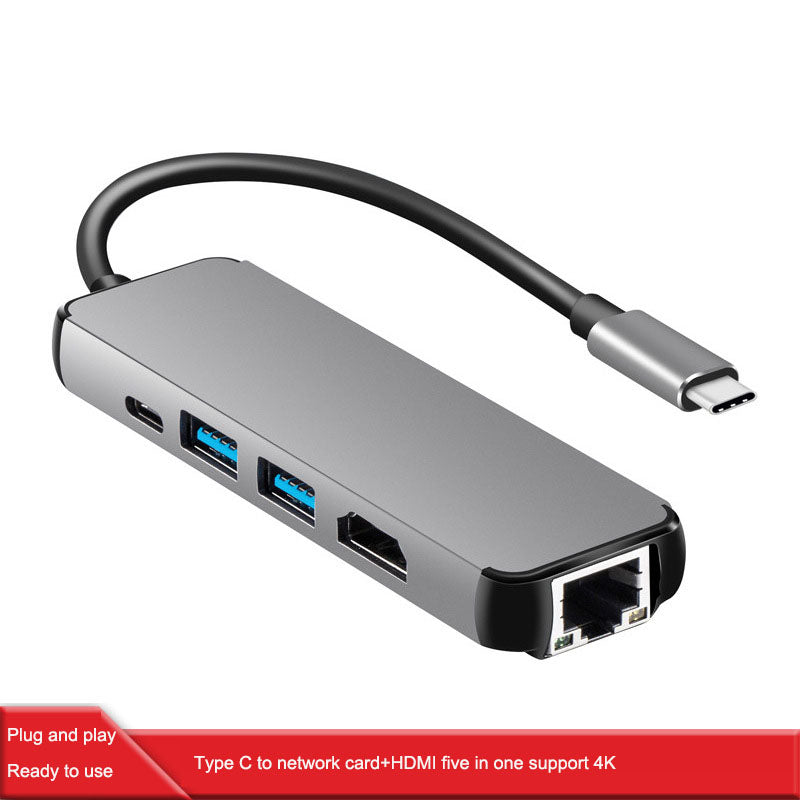

Typec to HDMI+network card+USB+PD all-in-one docking station

Product material: Aluminum alloy shell

Screen: Supports 4K * 2K backward compatibility

Data: USB 3.0 Fast Transfer

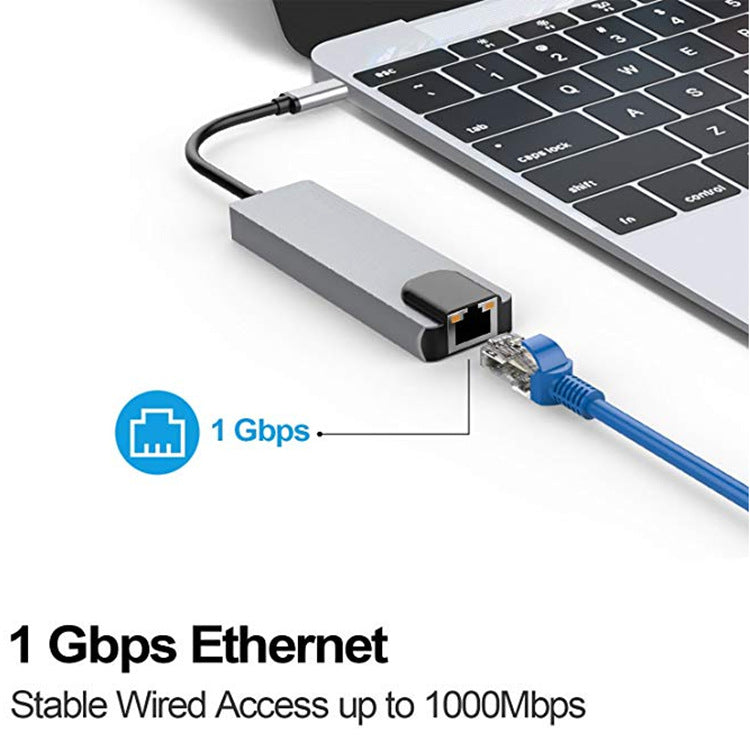

Network card: 10/100/1000Mbps Ethernet

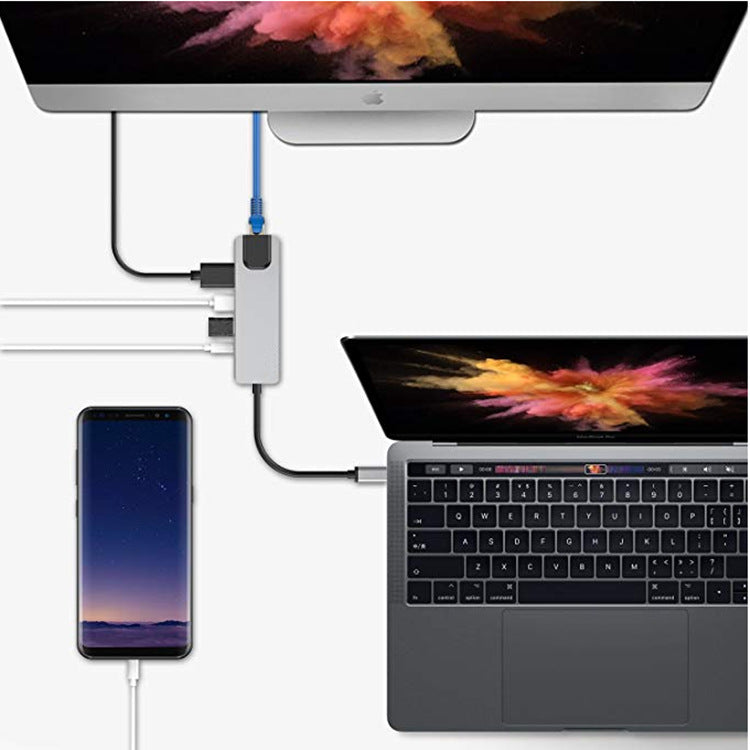

It is a video transmission adapter cable that can be used for input devices such as smartphones, tablets, laptops, etc. with USB-C interface. The USB-C interface has a small size and supports forward and reverse insertion for data transmission. The HDMI output terminal supports a video resolution of up to 3840X2160P/30HZ, and can output high-definition displays, LCD TVs, etc. (the device itself is required to have Type C protocol)

2、 The performance features use VL101+VL813+PS176+RTL8153 chips. 1. The highest resolution is 3840X2160P/30HZ (supported by the monitor host), and it also supports 1080p/23.98/24/50/59.94/60HZ, 1080i/50/59.94/60HZ, 720p/50/59.94/60HZ, etc. 2. It supports HDCP2.2 3. USB3.0A/F supports a maximum current of 0.9A and a maximum speed of 5Gbps 4. It is backward compatible with USB2.0/1.1 5. It complies with USB-C interface specifications 6. It supports SD/TF card data storage function 7. It has a built-in conversion chip for plug and play 8. Working temperature: 0~70 ℃ 9. Operating humidity: 10% to 85% RH (non condensing) 10. Storage temperature: -10~70 ℃ 11 Storage humidity: 5% to 90% RH (non condensing) 11: The network card supports a maximum of 1000M and supports 100M10M downwards
